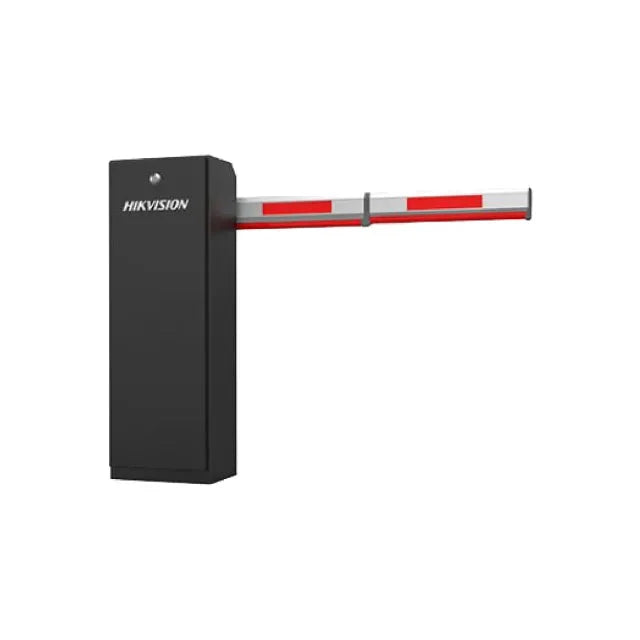

HIKVISION DS-TMG4B0-RA(6m) 4 Series Straight-Arm AC Barrier Gate, 6m telescopic pole

Hikvision DS-TMG4B0-RA 4 Series Straight-Arm AC Barrier Gate with 6m Telescopic Pole

The DS-TMG4B0-RA is a heavy-duty 4 Series AC-powered automatic barrier gate system featuring an innovative 6-meter telescopic pole design. Perfect for wide entrance installations with limited overhead space or where a compact retracted position is required, this professional-grade barrier gate delivers exceptional performance and smooth operation for high-traffic environments.

Key Features

• 6-Meter Telescopic Pole: Extra-long space-saving telescopic design that retracts when raised, ideal for wide entrances with low-clearance requirements
• Bi-Directional Operation: Available in right or left direction configurations
• Fast Operation: 6-second rising and falling speed for efficient traffic flow
• High Reliability: MCBF (Mean Cycles Between Failures) of 2,500,000 cycles
• AC Motor: Powerful AC motor for consistent performance with extended boom length
• 4 Series Platform: Advanced control system with enhanced features and reliability
• Weather Resistant: IP54 protection for reliable outdoor operation in all conditions
• Durable Construction: Cold-rolled steel (CRS) housing with gray finish
• Easy Integration: Compatible with access control systems, loop detectors, RFID readers, and remote controls

Technical Specifications

• Model: DS-TMG4B0-RA
• Series: 4 Series
• Boom Length: 6 meters (19.7 feet)
• Boom Type: Telescopic pole (retractable)
• Arm Moving Direction: Right/Left (configurable)
• Motor Type: AC motor
• Rising Speed: 6 seconds
• Falling Speed: 6 seconds
• MCBF: 2,500,000 cycles (Mean Cycles Between Failures)
• Power Supply: AC 220V, 50/60Hz
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Housing Material: CRS (Cold Rolled Steel)
• Housing Color: Gray
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Anti-collision detection, auto-reverse, emergency manual release
• Dimensions: Compact cabinet design
• Weight: Approximately 95kg

Telescopic Pole Advantages

• Space-saving design - 6m pole retracts when raised, reducing overhead clearance requirements
• Ideal for wide entrance installations with height restrictions or low ceilings
• Compact retracted position minimizes visual obstruction
• Perfect for parking garages and facilities with limited vertical space
• Reduces wind resistance when in raised position
• Covers wide entrances while maintaining compact overhead profile

Applications

• Wide parking garages with low ceiling clearance
• Underground parking facilities with extended entrance widths
• Commercial building access management
• Industrial facility main gates with height restrictions
• Indoor parking systems requiring wide coverage
• Multi-level parking structures
• Shopping mall parking areas
• Airport and port facilities with space constraints

Advanced Functions

• Configurable right or left directional operation
• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable speed settings
• Programmable delay time settings
• Traffic counting function
• Remote control support
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management

Safety & Reliability

• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Emergency manual release mechanism
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• High MCBF rating (2,500,000 cycles) ensures long-term reliability
• Fail-safe operation during power outages

Installation & Maintenance

• Suitable for installations with limited overhead space and wide entrances
• Configurable for right or left directional operation
• Easy access to internal components for maintenance
• Standard maintenance intervals for AC motor
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG4B0-RA barrier gate cabinet with heavy-duty AC motor
• 1x 6-meter telescopic pole (retractable design)
• Mounting hardware and foundation bolts
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card
