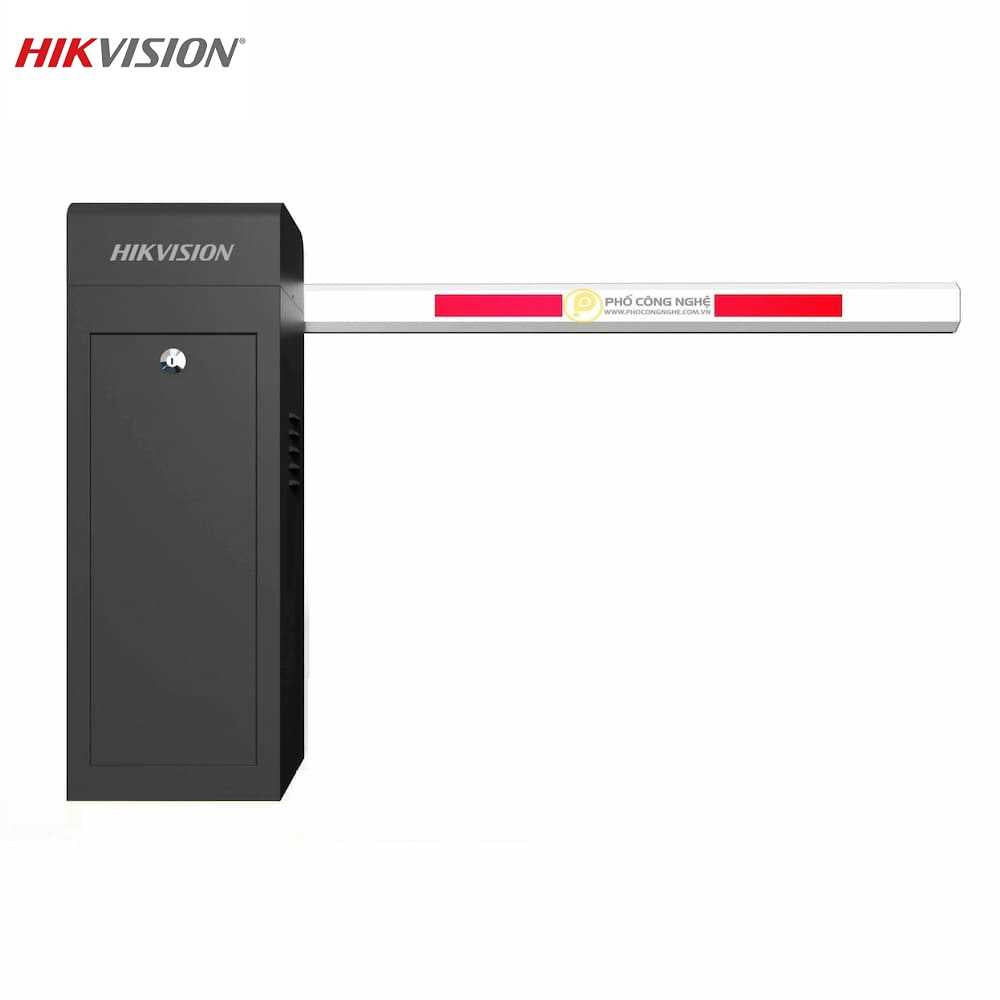

Hikvision DS-TMG4B0-RA(6m) 4 Series Straight-Arm AC Barrier Gate

• Motor: AC motor
• Barrier Boom: 6m round pole,
right/left direction
• Rising Speed: 6 S
DS-TMG4B0-RA-6MR
DS-TMG4B0-LA-6MR
• Falling Speed: 6 S
• MCBF: 2,500,000
• Power Supply: 220 VAC
• Protect Level: IP54
• Barrier Housing Material:  CRS
(Cold Rolled Steel)

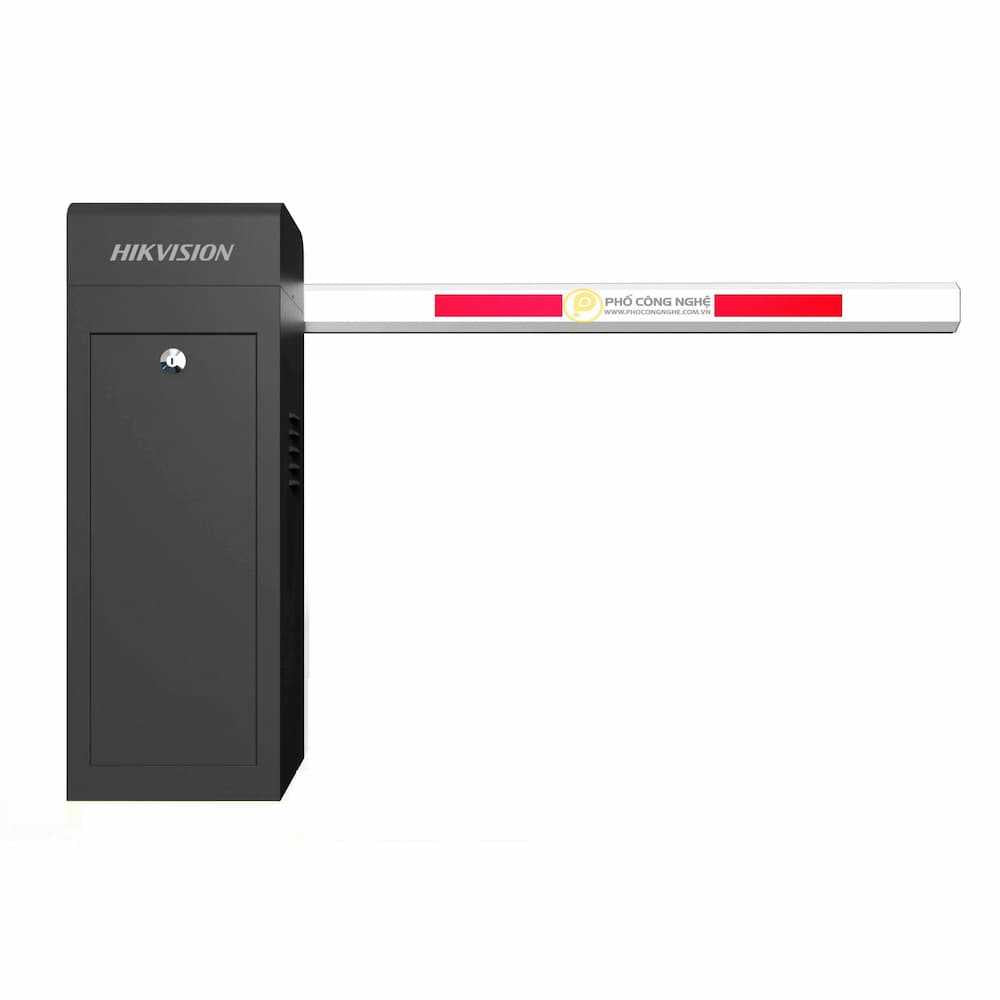

Hikvision DS-TMG4B0-RA 4 Series Straight-Arm AC Barrier Gate, 6m

The DS-TMG4B0-RA is a heavy-duty 4 Series AC-powered automatic barrier gate system engineered for wide entrance applications requiring superior strength and reliability. Featuring a robust 6-meter straight arm, this professional-grade barrier gate is ideal for large parking facilities, industrial sites, and high-security checkpoints where extended coverage is essential.

Key Features

• 6-Meter Straight Arm: Extra-long heavy-duty straight boom arm for wide entrance coverage
• High-Performance AC Motor: Powerful AC motor designed for extended boom operation
• Fast Operation: Efficient opening and closing cycles despite the extended boom length
• 4 Series Platform: Advanced control system with enhanced features and reliability
• Smart Control System: Programmable control board with multiple operating modes
• Enhanced Safety: Multi-level safety features including anti-collision detection, auto-reverse, and emergency manual release
• Weather Resistant: IP54 protection rating for reliable outdoor operation in harsh conditions
• LED Indicators: Integrated LED lighting for enhanced visibility day and night
• Easy Integration: Compatible with access control systems, loop detectors, RFID readers, and remote controls
• Durable Construction: Reinforced cabinet and boom structure for long-term reliability

Technical Specifications

• Model: DS-TMG4B0-RA
• Series: 4 Series
• Boom Length: 6 meters (19.7 feet)
• Boom Type: Straight arm
• Boom Material: High-strength aluminum alloy with reflective strips
• Motor Type: AC motor (heavy-duty)
• Opening/Closing Time: 4-8 seconds (adjustable)
• Duty Cycle: 100% continuous operation
• Power Supply: AC 220V ± 10%, 50/60Hz
• Power Consumption: Standby: ≤30W, Operating: ≤220W
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Control Interface: RS-485, relay output, dry contact input, network port
• Safety Features: Infrared sensor, pressure wave sensor, auto-reverse, obstacle detection
• Manual Release: Emergency key release mechanism
• LED Indicators: Integrated boom arm lighting with customizable colors
• Housing Material: Cold-rolled steel with anti-corrosion powder coating
• Dimensions: 320mm × 280mm × 1050mm (cabinet)
• Weight: Approximately 100kg
• Wind Resistance: Up to Beaufort scale 10

Applications

• Wide parking lot entrance and exit control
• Industrial facility main gates
• Commercial complex access management
• Toll stations and highway checkpoints
• Airport and port security gates
• Large residential community entrances
• Shopping mall parking systems
• Government and military facility access control

Advanced Functions

• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable opening/closing speed and acceleration
• Programmable delay time settings
• Traffic counting and statistics function
• Remote control support (up to 100 remote controls)
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management
• Scheduled operation modes (time-based access control)
• Integration with parking management systems

Safety & Reliability

• Advanced anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Battery backup option for uninterrupted operation during power failure
• Self-diagnostic system with error alerts and status indicators
• Thermal protection prevents motor overheating
• Reinforced boom structure withstands high wind loads
• Emergency breakaway boom option for enhanced safety

Installation & Maintenance

• Suitable for surface mounting or foundation installation
• Adjustable boom height and angle
• Easy access to internal components for maintenance
• Standard maintenance intervals for AC motor
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG4B0-RA barrier gate cabinet with heavy-duty AC motor
• 1x 6-meter straight aluminum boom arm with reflective strips
• Mounting hardware and foundation bolts
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card
