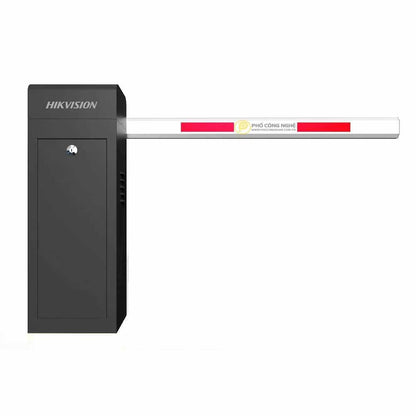

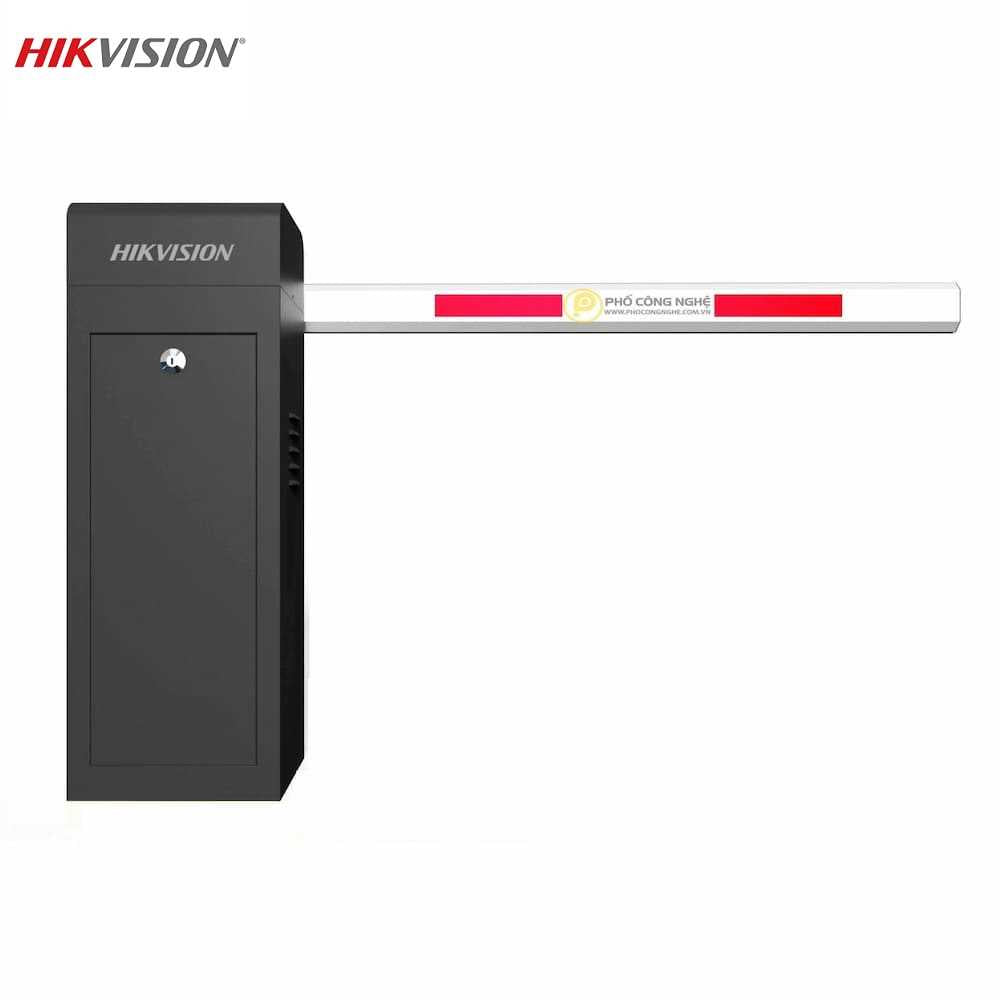

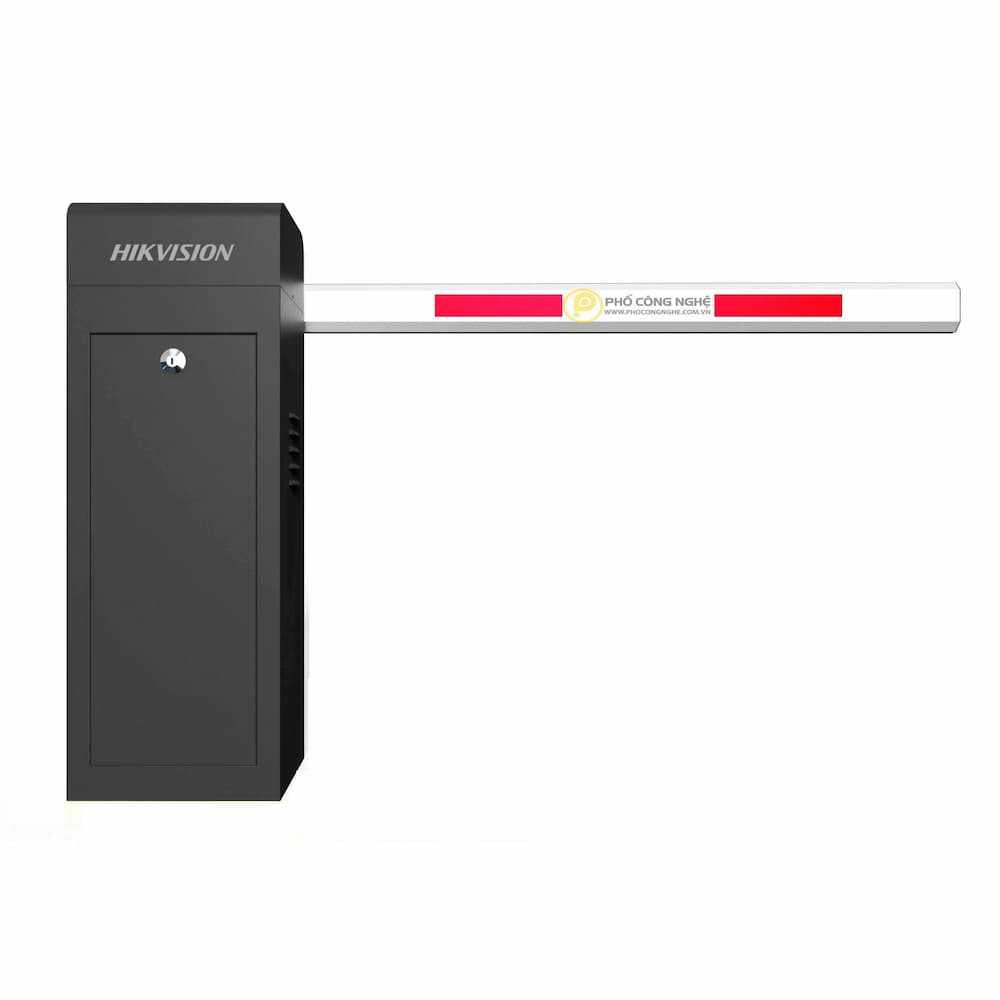

HIKVISION DS-TMG4B0-RA(4m) 4 Series Straight-Arm AC Barrier Gate, 4m

• Motor: AC motor
• Barrier Boom: 4m round pole,
right/left direction
• Rising Speed: 3 S
DS-TMG4B0-RA-4MR
DS-TMG4B0-LA-4MR
• Falling Speed: 3 S
• MCBF: 2,500,000
• Power Supply: 220 VAC
• Protect Level: IP54
• Barrier Housing Material:  CRS
(Cold Rolled Steel)
• Barrier Housing Color: Gray

Hikvision DS-TMG4B0-RA 4 Series Straight-Arm AC Barrier Gate, 4m

The DS-TMG4B0-RA is a professional 4 Series AC-powered automatic barrier gate system designed for reliable access control in parking lots, commercial facilities, and security checkpoints. Featuring a durable 4-meter straight arm, this barrier gate delivers exceptional performance and smooth operation for medium to high-traffic environments.

Key Features

• 4-Meter Straight Arm: Durable aluminum straight boom arm for reliable entrance coverage
• AC Motor: Powerful AC motor for consistent performance and long service life
• Fast Operation: Quick opening and closing cycles for efficient traffic flow
• 4 Series Platform: Advanced control system with enhanced features and reliability
• Smart Control System: Programmable control board with multiple operating modes
• Safety Features: Anti-collision detection, auto-reverse function, and emergency manual release
• Weather Resistant: IP54 protection for reliable outdoor operation in all conditions
• LED Indicators: Built-in LED lights for enhanced visibility and traffic guidance
• Easy Integration: Compatible with access control systems, loop detectors, RFID readers, and remote controls

Technical Specifications

• Model: DS-TMG4B0-RA
• Series: 4 Series
• Boom Length: 4 meters (13.1 feet)
• Boom Type: Straight arm
• Boom Material: Aluminum alloy with reflective strips
• Motor Type: AC motor
• Opening/Closing Time: 3-6 seconds (adjustable)
• Duty Cycle: 100% continuous operation
• Power Supply: AC 220V ± 10%, 50/60Hz
• Power Consumption: Standby: ≤25W, Operating: ≤180W
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Infrared sensor, pressure wave sensor, auto-reverse, obstacle detection
• Manual Release: Emergency key release mechanism
• LED Indicators: Integrated boom arm lighting
• Housing Material: Cold-rolled steel with anti-corrosion coating

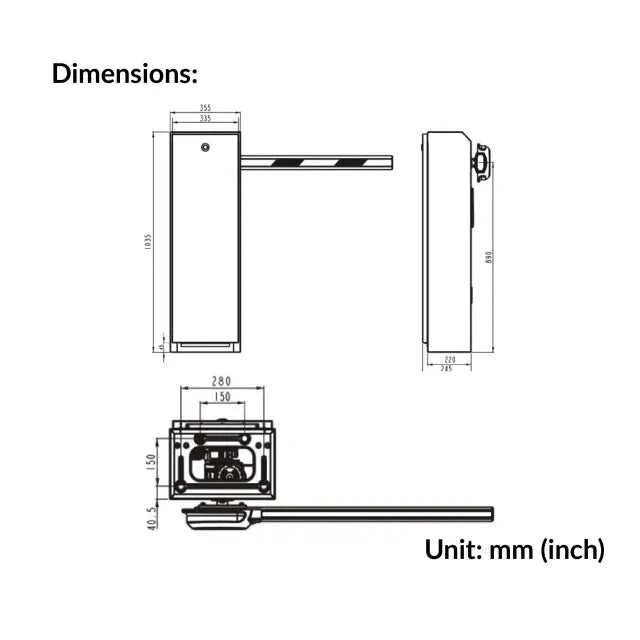

• Dimensions: 320mm × 280mm × 1050mm (cabinet)
• Weight: Approximately 90kg

Applications

• Parking lot entrance and exit control
• Commercial building access management
• Residential community gates
• Toll stations and checkpoints
• Industrial facility security
• Shopping mall parking systems
• Hotel and office building access control
• Government facility entrances

Advanced Functions

• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable opening/closing speed
• Programmable delay time settings
• Traffic counting function
• Remote control support (up to 100 remote controls)
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management
• Scheduled operation modes for time-based access control
• Integration with parking management systems

Safety & Reliability

• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Battery backup option for power failure operation
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• Emergency breakaway boom option available
• Fail-safe operation ensures safety during power outages

Installation & Maintenance

• Suitable for surface mounting or foundation installation
• Adjustable boom height and angle
• Easy access to internal components for maintenance
• Standard maintenance intervals for AC motor
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG4B0-RA barrier gate cabinet with AC motor
• 1x 4-meter straight aluminum boom arm with reflective strips
• Mounting hardware and accessories
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card

Why Choose SOUQ OASIS?

As Bahrain's trusted supplier of security and access control equipment, we provide genuine Hikvision products with local support, professional installation guidance, and fast delivery. Our experienced team offers expert consultation for parking management and access control solutions. Contact us for technical support, site assessment, and volume pricing for multiple units.
