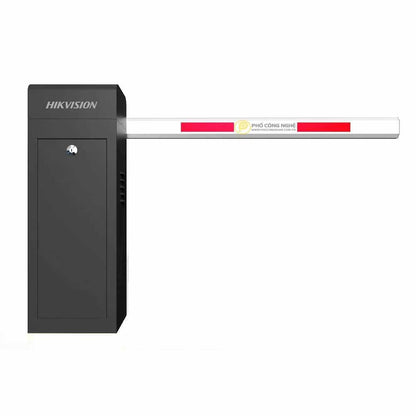

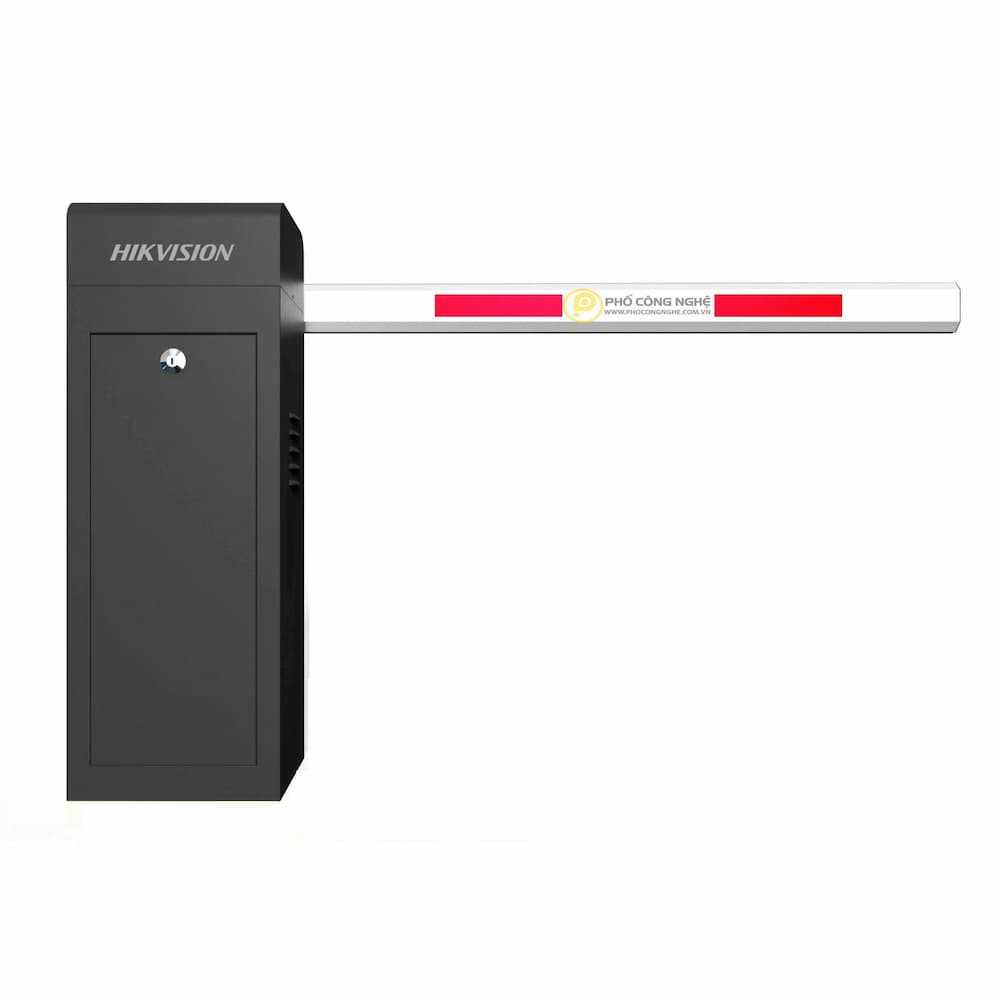

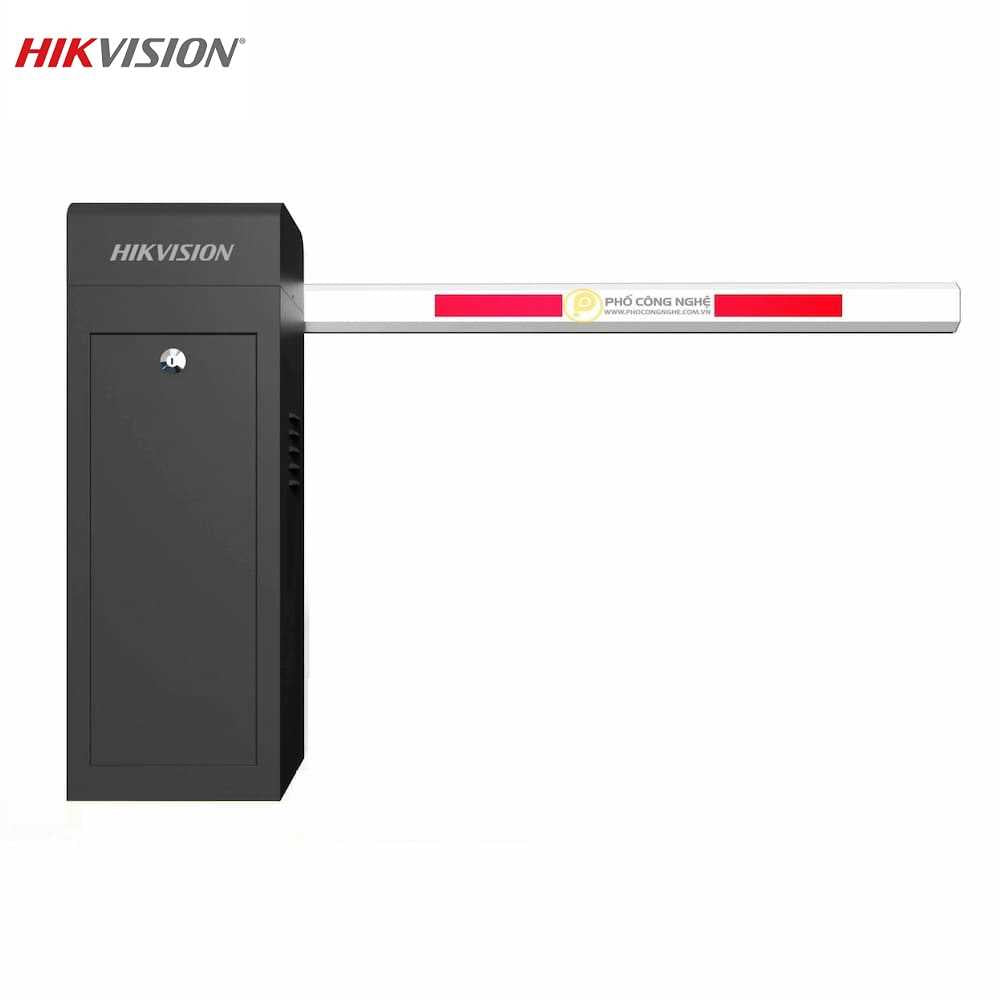

Hikvision DS-TMG4B0-LA(6m) 4 Series Straight-Arm AC Barrier Gate

• Motor: AC motor
• Barrier Boom: 6m round pole,
right/left direction
• Rising Speed: 6 S
DS-TMG4B0-RA-6MR
DS-TMG4B0-LA-6MR
• Falling Speed: 6 S
• MCBF: 2,500,000
• Power Supply: 220 VAC
• Protect Level: IP54
• Barrier Housing Material:  CRS
(Cold Rolled Steel)


Hikvision DS-TMG4B0-LA 4 Series Straight-Arm AC Barrier Gate, 6m (Leftward)

The DS-TMG4B0-LA is a heavy-duty 4 Series AC-powered automatic barrier gate system engineered for wide entrance applications requiring superior strength and reliability. Featuring a robust 6-meter straight arm with leftward opening direction, this professional-grade barrier gate is ideal for large parking facilities, industrial sites, and high-security checkpoints where extended coverage and specific directional requirements are essential.

Key Features

• 6-Meter Straight Arm: Extra-long heavy-duty straight boom arm (adjustable 4.5m-6.5m) for wide entrance coverage
• Leftward Opening: Boom arm moves in leftward direction for specific installation requirements
• Simple Wiring: No need to arrange or distribute cables for easy installation
• Wireless Remote Control: 430.5 MHz remote controller for convenient operation
• Three-Button Control: Control the boom pole to rise, fall, or stop with ease
• Contactless Monitoring: More accurate control and stable running performance
• Manual Hand Wheel: Emergency manual operation when power fails - rotate hand wheel to raise or lower pole
• Multiple Interfaces: Connectable to IR cable (low level signal input), induction, and toll connection systems
• Fast Operation: 4-second lift-up speed for efficient traffic flow despite extended boom length
• Weather Resistant: IP54 protection for reliable outdoor operation in harsh conditions

Technical Specifications

• Model: DS-TMG4B0-LA
• Series: 4 Series
• Boom Length: 6 meters (adjustable 4.5m-6.5m / 14.8-21.3 feet)
• Boom Type: Straight arm
• Arm Moving Direction: Leftward
• Barrier Type: Middle speed
• Lift-up Speed: 4 seconds
• Boom Material: High-strength aluminum alloy
• Motor Type: AC motor (heavy-duty)
• Power Supply: AC 220V, 50Hz
• Remote Control Frequency: 430.5 MHz
• Control Buttons: 3 buttons (rise, fall, stop)
• Manual Release: Hand wheel mechanism for emergency operation
• Color: Black background with silver pattern
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Control Interface: IR cable input, induction system, toll connection system
• Housing Material: Cold-rolled steel with anti-corrosion coating
• Weight: Approximately 100kg
• Wind Resistance: Up to Beaufort scale 10

Applications

• Wide parking lot entrance and exit control (leftward opening)
• Industrial facility main gates
• Commercial complex access management
• Toll stations and highway checkpoints
• Airport and port security gates
• Large residential community entrances
• Shopping mall parking systems
• Government and military facility access control

Advanced Functions

• Wireless remote control operation (430.5 MHz)
• Multiple control modes: remote, automatic, manual
• Contactless monitoring for precise control
• Simple wiring design reduces installation complexity
• Compatible with IR cable and induction systems
• Toll connection system integration
• Emergency manual operation via hand wheel
• Adjustable boom length (4.5m to 6.5m)

Safety & Reliability

• Emergency manual release with hand wheel design
• Contactless monitoring ensures stable operation
• Three-button control for precise boom management
• Fail-safe operation during power outages
• Reinforced boom structure withstands high wind loads
• Weather-resistant design for outdoor use
• Durable construction for long-term reliability

Installation & Maintenance

• Simple wiring - no complex cable arrangement needed
• Suitable for leftward opening installations
• Adjustable boom length (4.5m to 6.5m)
• Easy access to internal components for maintenance
• Hand wheel accessible for emergency manual operation
• Comprehensive installation manual included
• Suitable for surface mounting or foundation installation

Package Contents

• 1x DS-TMG4B0-LA barrier gate cabinet with heavy-duty AC motor
• 1x 6-meter straight aluminum boom arm (adjustable 4.5m-6.5m)
• Wireless remote controllers (2 units, 430.5 MHz)
• Mounting hardware and foundation bolts
• Installation manual and user guide
• Warranty card

Why Choose SOUQ OASIS?

As Bahrain's trusted supplier of security and access control equipment, we provide genuine Hikvision products with local support, professional installation guidance, and fast delivery. Our experienced team offers expert consultation for parking management and access control solutions, including site assessment to determine optimal barrier gate placement and opening direction for wide entrances. Contact us for technical support, installation services, and volume pricing for multiple units or large-scale projects.
