Hikvision DS-TMG420(4m anti-round) Barrier Gate with Straight Boom Pole

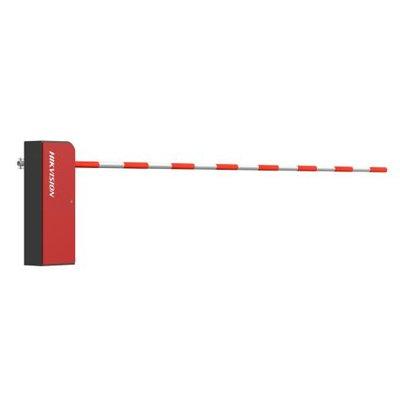

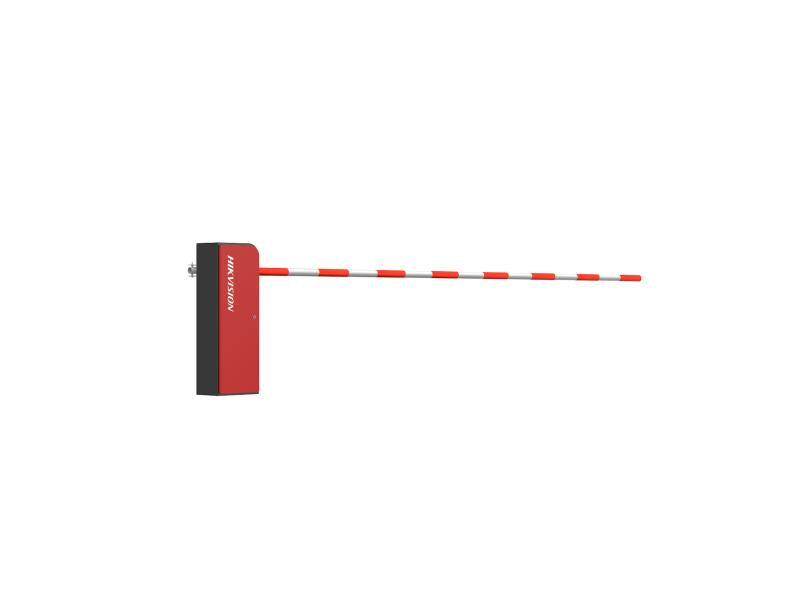

Hikvision DS-TMG420 Barrier Gate with 4m Anti-Round Boom Pole

The DS-TMG420 is a professional automatic barrier gate system designed for reliable access control in parking lots, commercial facilities, and security checkpoints. Featuring a durable 4-meter anti-round straight boom pole, this barrier gate delivers exceptional strength and smooth operation for medium to high-traffic environments.

Key Features

• 4-Meter Anti-Round Boom: Durable anti-round aluminum boom pole designed for enhanced rigidity and stability
• Fast Operation: Quick opening and closing cycles for efficient traffic flow
• Brushless DC Motor: Reliable, low-maintenance motor with extended service life
• Smart Control System: Advanced control board with multiple operating modes and programmable settings
• Safety Features: Anti-collision detection, auto-reverse function, and emergency manual release
• Weather Resistant: IP54 protection for reliable outdoor operation in all conditions
• LED Indicators: Built-in LED lights for enhanced visibility and traffic guidance
• Easy Integration: Compatible with access control systems, loop detectors, RFID readers, and remote controls

Technical Specifications

• Model: DS-TMG420
• Boom Length: 4 meters (13.1 feet)
• Boom Type: Anti-round straight pole
• Boom Material: Aluminum alloy with reflective strips
• Motor Type: Brushless DC motor
• Opening/Closing Time: 3-6 seconds (adjustable)
• Duty Cycle: 100% continuous operation
• Power Supply: AC 220V ± 10%, 50/60Hz
• Power Consumption: Standby: ≤20W, Operating: ≤150W
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Infrared sensor, pressure wave sensor, auto-reverse, obstacle detection
• Manual Release: Emergency key release mechanism
• LED Indicators: Integrated boom arm lighting
• Housing Material: Cold-rolled steel with anti-corrosion coating
• Dimensions: 320mm × 280mm × 1050mm (cabinet)
• Weight: Approximately 85kg

Applications

• Parking lot entrance and exit control
• Commercial building access management
• Residential community gates
• Toll stations and checkpoints
• Industrial facility security
• Shopping mall parking systems
• Hotel and office building access control

Advanced Functions

• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable opening/closing speed
• Programmable delay time settings
• Traffic counting function
• Remote control support (up to 100 remote controls)
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management
• Scheduled operation modes for time-based access control

Safety & Reliability

• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Battery backup option for power failure operation
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• Emergency breakaway boom option available

Installation & Maintenance

• Suitable for surface mounting or foundation installation
• Adjustable boom height and angle
• Easy access to internal components for maintenance
• Low maintenance requirements with brushless motor technology
• Modular design for quick component replacement

Package Contents

• 1x DS-TMG420 barrier gate cabinet with motor
• 1x 4-meter anti-round aluminum boom pole with reflective strips
• Mounting hardware and accessories
• Remote controls (2 units)
• Installation manual and user guide

Why Choose SOUQ OASIS?

As Bahrain's trusted supplier of security and access control equipment, we provide genuine Hikvision products with local support, professional installation guidance, and fast delivery. Our experienced team offers expert consultation for parking management and access control solutions. Contact us for technical support, site assessment, and volume pricing for multiple units.
