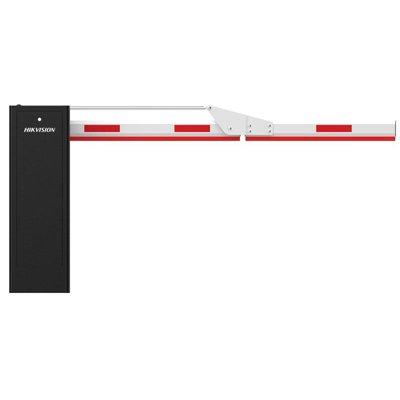

Hikvision DS-TMG301-DR(2+2m) Folding Pole Barrier Gate

Hikvision DS-TMG301-DR Folding Pole Barrier Gate (2+2m)

The DS-TMG301-DR is an innovative automatic barrier gate system featuring a unique 2+2m folding pole design. Perfect for narrow installations or areas with space constraints, this professional-grade barrier gate delivers exceptional performance with a compact footprint while maintaining effective entrance coverage.

Key Features

• Folding Pole Design: Innovative 2+2m folding configuration allows installation in narrow spaces
• Space-Saving Solution: Ideal for locations where traditional straight boom gates cannot be installed
• DC Brushless Motor: Advanced brushless motor technology for quiet, efficient, and maintenance-free operation
• Fast Operation: 3-6 second rising and falling speed for efficient traffic flow
• High Reliability: MCBF (Mean Cycles Between Failures) of 2,500,000 cycles
• Right Direction: Configured for Rightward opening operation
• Weather Resistant: IP54 protection for reliable outdoor operation
• Premium Design: Black background with silver pattern for professional appearance
• Easy Integration: Compatible with access control systems, loop detectors, and parking management platforms

Technical Specifications

• Model: DS-TMG301-DR

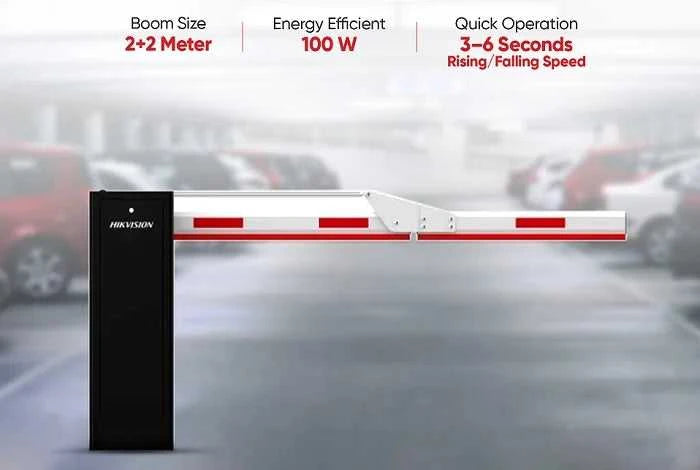

• Boom Length: 2m + 2m (total 4m coverage with folding design)
• Boom Type: Folding pole (articulated design)
• Arm Moving Direction: right direction
• Motor Type: DC brushless motor
• Rising Speed: 3 to 6 seconds
• Falling Speed: 3 to 6 seconds
• MCBF: 2,500,000 cycles (Mean Cycles Between Failures)
• Power Supply: AC 220V, 50/60Hz
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Housing Material: Cold-rolled steel sheet
• Housing Color: Black background with silver pattern
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Anti-collision detection, auto-reverse, emergency manual release
• Dimensions: Compact cabinet design
• Weight: Approximately 85kg

Folding Pole Advantages

• Space-saving design perfect for narrow installations
• 2+2m articulated configuration provides 4m total coverage
• Ideal for locations where straight boom installation is not possible
• Reduces required clearance space on both sides of the barrier
• Maintains effective entrance control in confined areas
• Professional appearance with smooth folding operation

Applications

• Narrow parking lot entrances and exits
• Residential community gates with limited space
• Commercial buildings with space constraints
• Urban parking facilities with tight clearances
• Pedestrian-adjacent vehicle access points
• Retrofits where traditional barriers don't fit
• Indoor parking systems with narrow lanes
• Service entrances and loading docks

Advanced Functions

• Right directional operation
• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable speed settings (3-6 seconds)
• Programmable delay time settings
• Traffic counting function
• Remote control support
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management

Safety & Reliability

• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Emergency manual release mechanism
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• High MCBF rating (2,500,000 cycles) ensures long-term reliability
• Brushless motor technology eliminates maintenance requirements
• Articulated design reduces impact force

Installation & Maintenance

• Ideal for narrow installations where space is limited
• Right direction configuration
• Reduced side clearance requirements compared to straight boom
• Easy access to internal components for maintenance
• Brushless motor requires minimal maintenance
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG301-DR barrier gate cabinet with DC brushless motor
• 1x 2+2m folding pole (articulated design)
• Mounting hardware and accessories
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card

Why Choose SOUQ OASIS?

As Bahrain's trusted supplier of security and access control equipment, we provide genuine Hikvision products with local support, professional installation guidance, and fast delivery. Our experienced team offers expert consultation for parking management and access control solutions, especially for installations with space constraints. Contact us for technical support, site assessment to determine if a folding pole barrier is right for your location, and volume pricing for multiple units.
