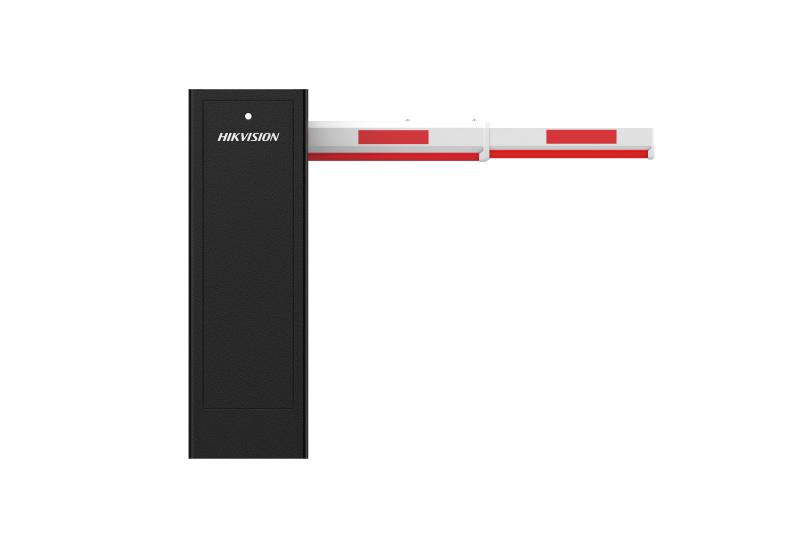

Hikvision DS-TMG300-DR/A(4m light bar) 30 Series Straight Pole Barrier Gate With LED Light Bar

Hikvision DS-TMG300-DR/A 30 Series 4M Straight Pole Barrier Gate with LED Light Bar (Rightward)

The DS-TMG300-DR/A is a premium 30 Series automatic barrier gate system featuring an integrated LED light bar for enhanced visibility and traffic guidance with rightward opening direction. With a 4-meter straight pole and advanced DC brushless motor technology, this professional-grade barrier gate delivers exceptional performance, reliability, and visual appeal for modern access control installations.

Hikvision barrier gate Bahrain ,Hikvision Bahrain

Key Features

• Integrated LED Light Bar: Multi-color LED lighting system provides clear visual indicators for traffic status
• 4-Meter Straight Pole: Durable aluminum boom arm with integrated LED lighting
• Rightward Opening: Boom arm moves in rightward direction for specific installation requirements
• DC Brushless Motor: Advanced brushless motor technology for quiet, efficient, and maintenance-free operation
• Ultra-Fast Operation: 3-second rising and falling speed for maximum traffic efficiency
• High Reliability: MCBF (Mean Cycles Between Failures) of 2,500,000 cycles
• 30 Series Platform: Premium control system with advanced features and superior reliability
• Enhanced Visibility: LED light bar improves safety and provides clear traffic guidance day and night
• Weather Resistant: IP54 protection for reliable outdoor operation
• Premium Design: Black background with silver pattern for professional appearance
• Easy Integration: Compatible with access control systems, loop detectors, and parking management platforms

Technical Specifications

• Model: DS-TMG300-DR/A
• Series: 30 Series
• Boom Length: 4 meters (13.1 feet)
• Boom Type: Straight pole with integrated LED light bar
• LED Light Bar: Multi-color traffic indicator
• Arm Moving Direction: Right direction
• Motor Type: DC brushless motor
• Rising Speed: 3 seconds
• Falling Speed: 3 seconds
• MCBF: 2,500,000 cycles (Mean Cycles Between Failures)
• Power Supply: AC 220V, 50/60Hz
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Housing Material: Cold-rolled steel sheet
• Housing Color: Black background with silver pattern
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Anti-collision detection, auto-reverse, emergency manual release
• LED Indicators: Integrated light bar for traffic status
• Dimensions: Premium cabinet design
• Weight: Approximately 90kg

LED Light Bar Functions

• Clear visual indicators for traffic status and barrier position
• Customizable light patterns for different operational modes
• High-brightness LEDs visible in all lighting conditions
• Energy-efficient LED technology with long service life
• Enhances safety by providing clear visual guidance to drivers

Applications

• Premium parking lot entrance and exit control (rightward opening)
• Commercial building access management
• High-traffic areas requiring clear visual guidance
• Shopping mall parking systems
• Hotel and office building access control
• Residential community gates
• Toll stations and checkpoints
• Airport and port facilities

Advanced Functions

• LED light bar for traffic status indication
• Rightward directional operation
• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable speed settings
• Programmable delay time settings
• Traffic counting function
• Remote control support
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management
• Customizable LED light patterns

Safety & Reliability

• Visual traffic guidance with LED system enhances safety
• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Emergency manual release mechanism
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• High MCBF rating (2,500,000 cycles) ensures long-term reliability
• Brushless motor technology eliminates maintenance requirements

Installation & Maintenance

• Right direction configuration
• Easy access to internal components for maintenance
• Brushless motor requires minimal maintenance
• LED light bar is long-lasting and energy-efficient
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG300-DR/A barrier gate cabinet with DC brushless motor
• 1x 4-meter straight pole with integrated LED light bar
• Mounting hardware and accessories
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card

Why Choose SOUQ OASIS?

As Bahrain's trusted supplier of security and access control equipment, we provide genuine Hikvision products with local support, professional installation guidance, and fast delivery. Our experienced team offers expert consultation for parking management and access control solutions with premium features like LED light bars for enhanced visibility and safety. Contact us for technical support, site assessment, and volume pricing for multiple units.
