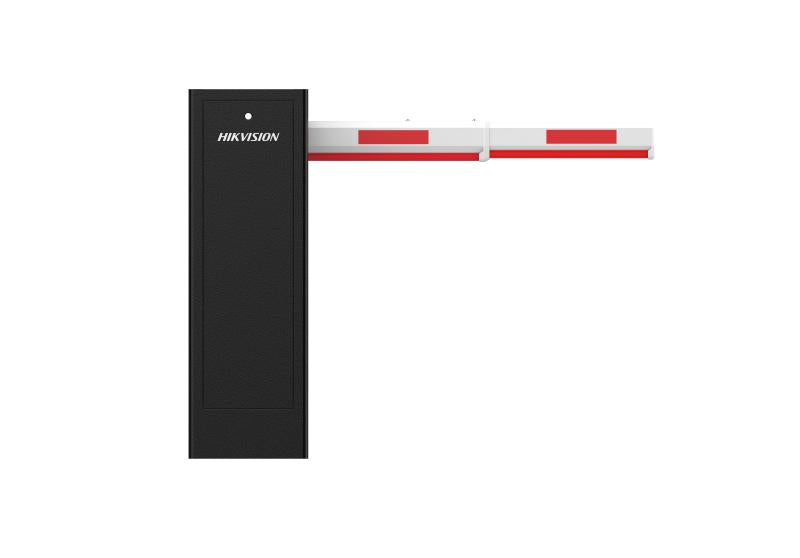

Hikvision DS-TMG300-DL/A 30 Series 4M Straight Pole Barrier Gate With LED Light Bar

Hikvision DS-TMG300-DL/A 30 Series 4M Straight Pole Barrier Gate with LED Light Bar

The DS-TMG300-DL/A is a premium 30 Series automatic barrier gate system featuring an integrated 3-color LED light bar for enhanced visibility and traffic guidance. With a 4-meter straight pole and advanced DC brushless motor technology, this professional-grade barrier gate delivers exceptional performance, reliability, and visual appeal for modern access control installations.

Hikvision barrier gate Bahrain

Key Features

• Integrated LED Light Bar: 3-color LED lighting system provides clear visual indicators for traffic status (red, yellow, green)
• 4-Meter Straight Pole: Durable aluminum boom arm with integrated LED lighting
• DC Brushless Motor: Advanced brushless motor technology for quiet, efficient, and maintenance-free operation
• Ultra-Fast Operation: 3-second rising and falling speed for maximum traffic efficiency
• High Reliability: MCBF (Mean Cycles Between Failures) of 2,500,000 cycles
• 30 Series Platform: Premium control system with advanced features and superior reliability
• Enhanced Visibility: LED light bar improves safety and provides clear traffic guidance day and night
• Weather Resistant: IP54 protection for reliable outdoor operation
• Premium Design: Black background with silver pattern for professional appearance
• Easy Integration: Compatible with access control systems, loop detectors, and parking management platforms

Technical Specifications

• Model: DS-TMG300-DL/A
• Series: 30 Series
• Boom Length: 4 meters (13.1 feet)
• Boom Type: Straight pole with integrated LED light bar
• LED Light Bar: 3-color (red, yellow, green) traffic indicator
• Arm Moving Direction: Left direction
• Motor Type: DC brushless motor
• Rising Speed: 3 seconds
• Falling Speed: 3 seconds
• MCBF: 2,500,000 cycles (Mean Cycles Between Failures)
• Power Supply: AC 220V, 50/60Hz
• Operating Temperature: -30°C to +70°C
• Humidity: ≤95% RH (non-condensing)
• Protection Level: IP54 (weatherproof)
• Housing Material: Cold-rolled steel sheet
• Housing Color: Black background with silver pattern
• Control Interface: RS-485, relay output, dry contact input
• Safety Features: Anti-collision detection, auto-reverse, emergency manual release
• LED Indicators: 3-color light bar (red/yellow/green)
• Dimensions: Premium cabinet design
• Weight: Approximately 90kg

LED Light Bar Functions

• Red Light: Indicates barrier is closed/stop - do not proceed
• Yellow Light: Indicates barrier is in motion - caution
• Green Light: Indicates barrier is open/go - safe to proceed
• Customizable light patterns for different operational modes
• High-brightness LEDs visible in all lighting conditions
• Energy-efficient LED technology with long service life

Applications

• Premium parking lot entrance and exit control
• Commercial building access management
• High-traffic areas requiring clear visual guidance
• Shopping mall parking systems
• Hotel and office building access control
• Residential community gates
• Toll stations and checkpoints
• Airport and port facilities

Advanced Functions

• 3-color LED light bar for traffic status indication
• Multiple operating modes: automatic, semi-automatic, manual
• Adjustable speed settings
• Programmable delay time settings
• Traffic counting function
• Remote control support
• Loop detector integration for automatic vehicle detection
• Network connectivity for centralized management
• Customizable LED light patterns

Safety & Reliability

• Visual traffic guidance with 3-color LED system enhances safety
• Anti-collision system prevents damage from vehicle impact
• Auto-reverse function protects vehicles and pedestrians
• Emergency manual release mechanism
• Self-diagnostic system with error alerts
• Thermal protection prevents motor overheating
• High MCBF rating (2,500,000 cycles) ensures long-term reliability
• Brushless motor technology eliminates maintenance requirements

Installation & Maintenance

• Left direction configuration
• Easy access to internal components for maintenance
• Brushless motor requires minimal maintenance
• LED light bar is long-lasting and energy-efficient
• Modular design for quick component replacement
• Comprehensive installation manual included

Package Contents

• 1x DS-TMG300-DL/A barrier gate cabinet with DC brushless motor
• 1x 4-meter straight pole with integrated 3-color LED light bar
• Mounting hardware and accessories
• Remote controls (2 units)
• Installation manual and user guide
• Warranty card
