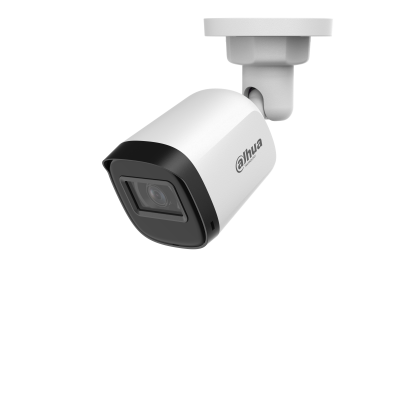

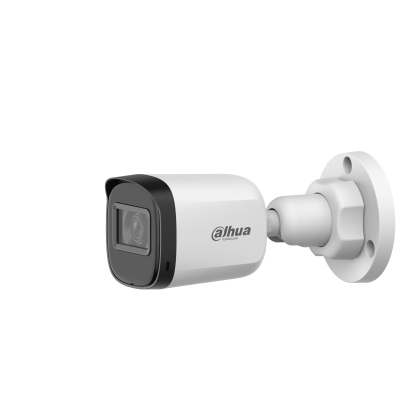

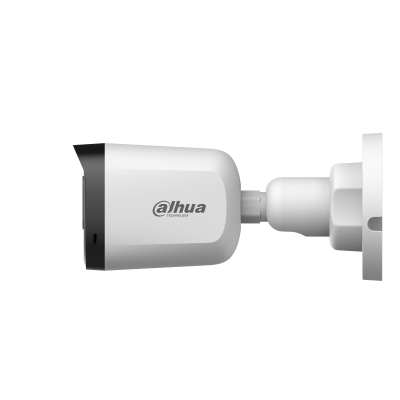

Dahua HAC-B1A51-U new-products 5MP IR HDCVI Fixed-focal Bullet Camera

Name: Dahua HAC-B1A51-U new-products 5MP IR HDCVI Fixed-focal Bullet Camera
Brand: Souq Oasis
Price: 11.500 BHD
Availability: InStock

11.500 BHD

Sale Sold out

> Max 25 fps@5MP (16:9 video output)

> Smart IR Illumination.

> 30 m illumination distance.

> 3.6 mm fixed lens (2.8 mm, 6 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, 12 VDC.

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.02 lux@F2.0 (Color, 30 IRE)
0.002 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 105.5°; V: 56.5°; D: 125.3°
3.6 mm: H: 86°; V: 46.1°; D: 104.3°
6 mm: H: 53.9°; V: 30.7°; D: 62.1°

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)
6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	66.0 m ( 216.54 ft)	26.4 m ( 86.61 ft)	13.2 m ( 43.31 ft)	6.6 m ( 21.65 ft)
3.6 mm	79.4 m ( 260.50 ft)	31.8 m ( 104.33 ft)	15.9 m ( 52.17 ft)	7.9 m ( 25.92 ft)
6 mm	118 m ( 387.14 ft)	47.2 m ( 154.86 ft)	23.6 m ( 77.43 ft)	11.8 m ( 38.71 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto

Noise Reduction

2D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC (±30%)

Power Consumption

Max 3.5 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75") (L × W × H)

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.25 kg (0.55 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
