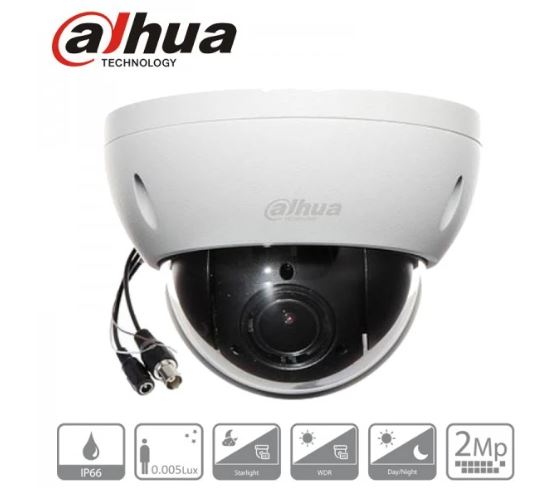

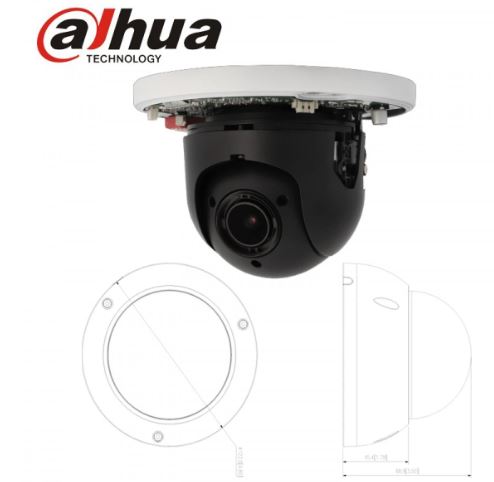

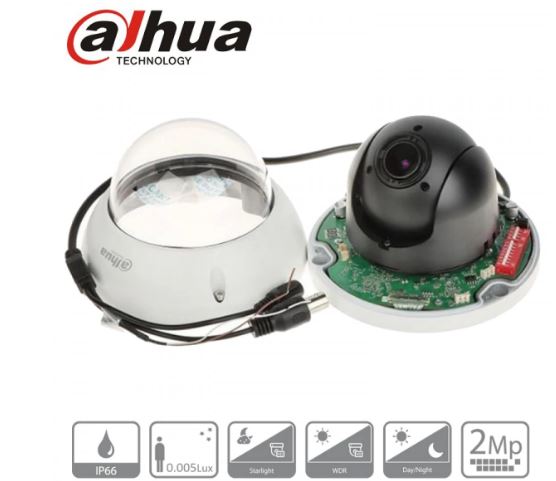

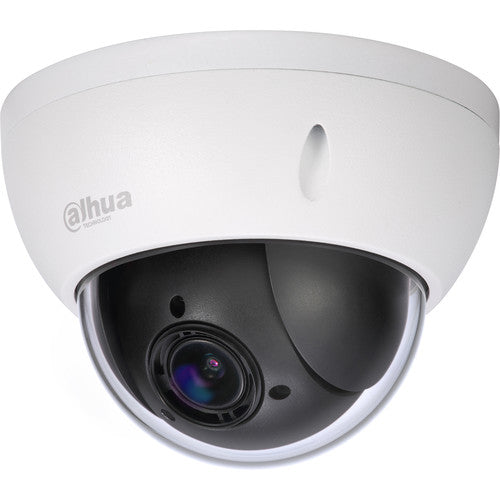

Dahua DH-SD22204I-GC 2MP 4x PTZ HDCVI Camera, WDR, 3D DNR, IP66, Vandal-proof

Megapixel camera with 1/2.7" CMOS converter and HD-CVI (High Definition Composite Video Interface).

The HD-CVI interface allows the transmission of analog video signals over coaxial cable. This enables the transmission of HD images over a distance of 500 meters while maintaining low installation costs. During transmission, there are no delays and the image quality is high.

The camera complies with IP66 waterproofing class.

Standard :	HD-CVI , PAL
Transducer :	1/2.7" Progressive Scan Exmor CMOS
Matrix size :	2.1  MP
Resolution :	1920 x 1080 - 1080p 1280 x 720 - 720p 960 x 576 - 960H
Range of the IR illuminator :
Objective :	2.7 ... 11 mm
Viewing angle :	112.5° ... 30°
Optical zoom :	x 4
Digital zoom :	x 16
The rotation speed depends on the ZOOM value :
The extent of the rotation horizontally :	355°, Head rotation is limited by a limit switch
The extent of rotation in the vertical direction :	0° ... 90°
Rotation speed (manual control) :	0.1°/s...100°/s (level), 0.1°/s...60°/s (vertical)
Rotation speed with presets :	100°/s (level), 60°/s (vertical)
Order :	Using the RS-485 interface , control is possible via coaxial cable using a DAHUA, BCS, or RAPID recorder.
Protocols :	Pelco-D , Pelco-P , DH-SD (auto-detection)
The signal-to-noise ratio (S/N) :	> 55  dB
Video output :	HD-CVI / PAL , 1  Vpp 75 Ω
Audio :
Number of presets :	300
Parameterized movement paths :	8
Horizontal scan :
Park action :	The configured function (path, scan, etc.) is called after a defined period of inactivity.
Alert inputs/outputs :
Selected functions :	ICR – Infrared Mechanical Filter 2D-DNR / 3D-DNR - Digital noise reduction in the image WDR - 120 dB - Wide lighting dynamic range BLC/HLC – background/highlight compensation Automatic white balance 24  Configurable Privacy Zones
OSD screen menu :
Waterproofing class :	IP66
Anti-vandalism :	IK10
Food :	12 V DC / 1500 mA
Case :	Speed Dome, Metal
Color :	White
Working temperature :	-30 °C ... 60 °C
Weight :	0.51 kg (with stand)
Dimensions :	Ø 122 x 89 mm
LANGUAGES :	English
Manufacturer/Brand :	DAHUA
