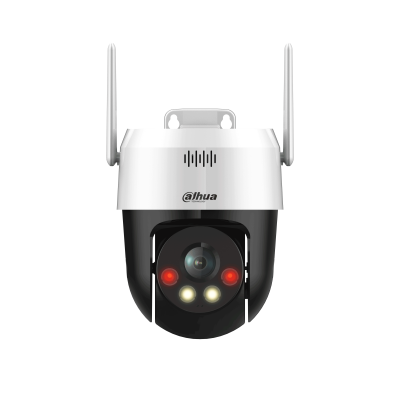

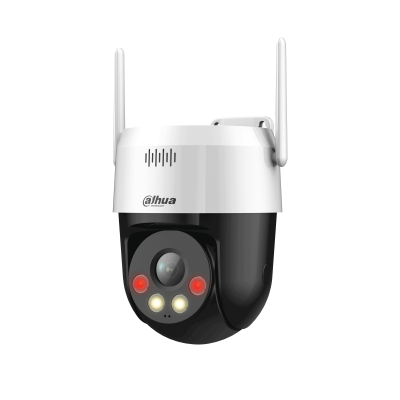

Dahua DH-P5AE-PV 5MP PTZ WiFi Network Camera,
Dahua DH-P5AE-PV 5MP PTZ WiFi Network Camera,
Regular price
28.990 BHD
Regular price
Sale price
28.990 BHD
Quantity
Couldn't load pickup availability
Dahua 5MP PTZ WiFi Network Camera, Active Defense, Human Detection, 30m IR/Warm Light, Two-Way Talk, Smart Dual Illuminators, and 300 Preset Positions, Full-Color Night Vision | DH-P5AE-PV
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time.It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.
Specification
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2560 (H) × 1920 (V) |
| Electronic Shutter | 1 s–1/100,000 s |
| Illuminator Number | 2 IR lights + 2 warm lights |
| Illumination Distance | 30 m (IR and warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–345°; Tilt: 0°–+80° |
| Presets | 300 |
| Smart Features | |
| IVS | Tripwire, Intrusion Detection |
| Human Detection | Yes |
| SMD | SMD 3.0 |
| Active Deterrence | |
| Light Warning | Warm light flash (5–30 s); flash frequency: high/medium/low |
| Sound Warning | 1 built-in alarm + up to 10 custom alarms; volume: 0–100%; plays 1–10 times |
| Video | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264B/M/H, MJPEG (Sub Stream 1) |
| Resolutions | 5M, 4M, 3M, 1080p, 720p, D1, CIF |
| Frame Rate | Main: up to 30 fps (5M–720p); Sub: up to 30 fps (D1/VGA/CIF) |
| Bit Rate | H.264: 104–8192 kbps; H.265: 41–8192 kbps |
| Day/Night | Auto (ICR), Color, B/W |
| WDR | DWDR |
| Image Rotation | 180° |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Wi-Fi Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz (2.4000–2.4835 GHz) |
| Power Transmission | ≤20 dBm @ 2.4 GHz |
| Storage | Micro SD (up to 256 GB), FTP |
| Browser Support | IE 7+, Chrome, Firefox, Safari |
| Software | Smart PSS, DMSS, Player, ConfigTool, NVR, Smart Player |
| Mobile App | iOS, Android |
| Certification | CE |
| Power | 12 VDC, 1 A ±10% (adapter included) |
| Environment | |
| Operating Temp | –30°C to +55°C (–22°F to +131°F) |
| Operating Humidity | ≤95% (non-condensing) |
| Structure | |
| Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1 kg (2.20 lb) |
